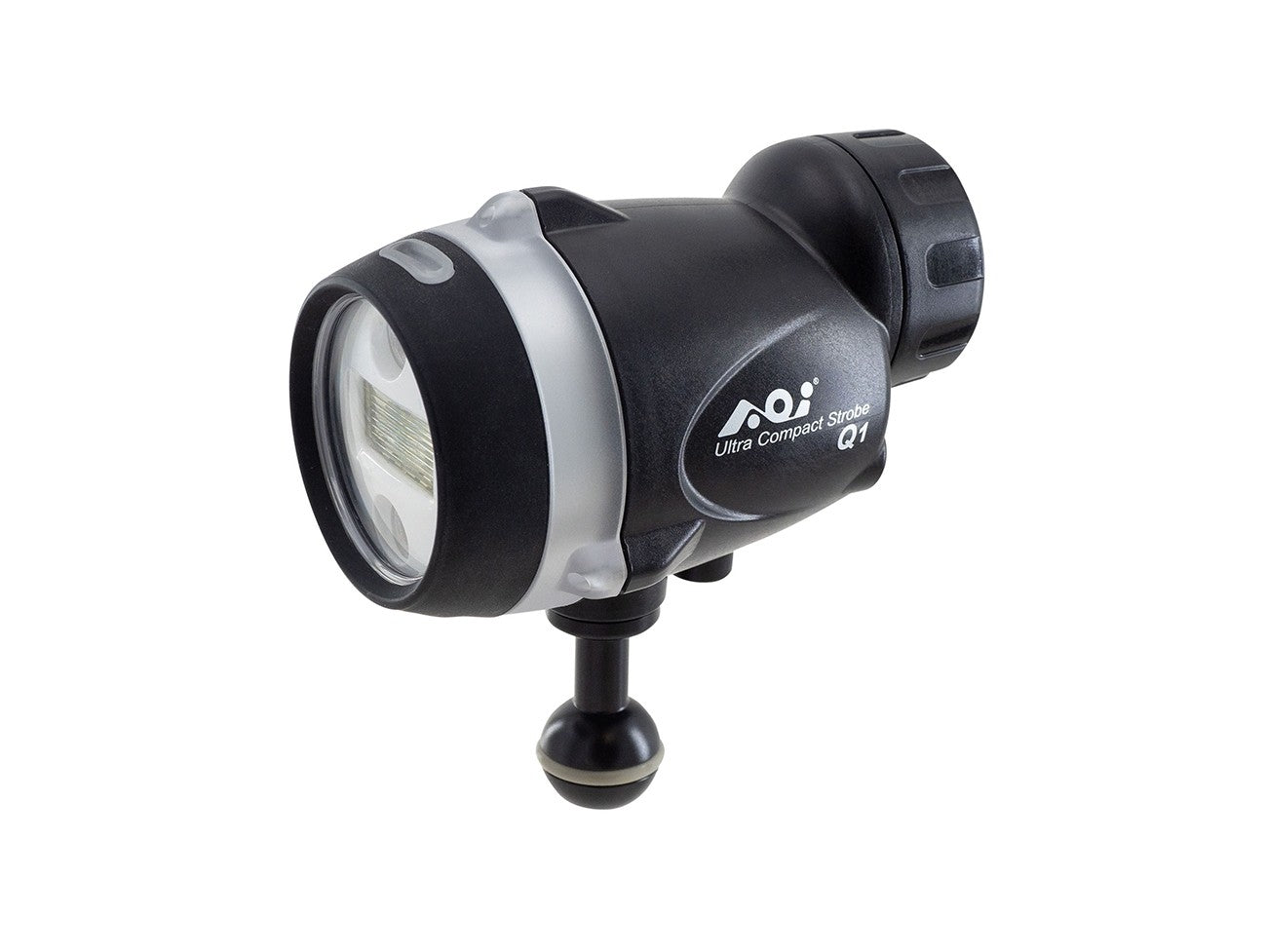

AOI Ultra Compact Strobe Q1 (UCS-Q1)

  • RM1,435.00
    Unit price per
Shipping calculated at checkout.

The control panel of the UCS-Q1 is kept simple with just two buttons and a single knob. The knob controls the power setting; the maximum brightness is at number 7 or the equivalent of Guide Number 22. Keeping the strobe to only manual function means that when used with an automatic compact camera, it is easy to obtain the desired the brightness. Just adjust the brightness of the strobe to match the exposure of the camera. The strobe has a very useable beam angle of 85 degrees with the diffuser on.

The left button activates the continuous light function, which has 3 power setting. The different power settings can be obtained by cycling through the button. The highest setting is at 700 lumens which is bright enough for macro shots or even as an underwater torchlight. The continuous light also works as a focus light, allowing for quicker focusing and determining the desired strobe position. In keeping with the concept of “My First Strobe”, the simplicity aspect extends to the ownership experience and maintenance. The buttons and knobs are clearly labelled – making it easy to control, even with gloves on.

The battery compartment is secured with a screw-on cap that is sealed with two o-rings to prevent accidental flooding. Should the battery compartment flood, it does not affect the electronic compartment as the two are kept separate and preventing a hefty repair bill. The strobe is powered by two 18650 lithium batteries, which offers a up to 2000 flashes on a single charge and provides consistent power delivery, even at low levels. The strobe is equipped with power stand-by and auto power-off features to conserve power and increase the lifespan of the strobe.

Model Number: UCS-Q1  Underwater Ultra compact strobe

Main Body Material: Polycarbonate + Glass Fiber

Waterproof Level: 60 Meters / 200 Ft.

Guide Number: 22

Color Temperature: 5600K

Beam Angles: Horizontal- 85°, Vertical- 85° (with Diffuser)

Flash recharge time: 0.85 Second (Full Power)

Number of flashes: 2000 Times Full Flash with 3500mAh Li-Ion Batteries x2

Pre-Flash Counting: Auto Detect and Setting

Led light;

Maximum Output: 700 Lumens

Color Temperature: 5600K

Beam Angle: 45°

Burn Time: 160 Minutes (Max. Brightness with 3500mAh Li-Ion Batteries x2)

Battery: 18650 (5A Min) Li-Ion Rechargeable Batteries x2

Dimensions: 125mm (L) X76mm (W) X130mm (H) (Ball Mount Included)


Underwater : Approx. 70g (Batteries Included)

On Land : Approx. 520g (Batteries Included)
